In the test room, the transformers are subject to a series of measurements and tests. Routine tests are carried out on all transfomers prior shipping.
Once the routine tests are complete, the protection instruments and other accessories are fitted on the transformer and then the transformer is subjected to a complete final check. Subsequently the rating plate is fixed on the tank.
Once the routine tests are complete, the protection instruments and other accessories are fitted on the transformer and then the transformer is subjected to a complete final check. Subsequently the rating plate is fixed on the tank.
Routine Tests:
- Voltage ratio and phase displacement IEC 60076-1
- Insulation resistance IEC 60076-1
- Applied Voltage test IEC 60076-3
- Induced voltage test IEC 60076-3
- No load loss test IEC 60076-1
- Winding resistance IEC 60076-1
- Impedance and load loss test IEC 60076-1
- Control wiring, auxiliary operation
Upon request, witnesse type/special tests can be carried out.
Collaboration with leading laboratories guarantees independent validation and high reliability of our transformer designs.

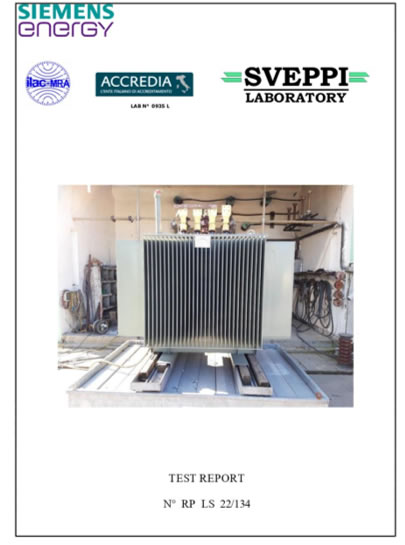

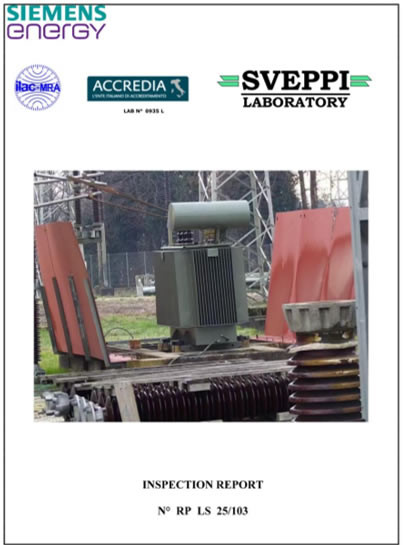

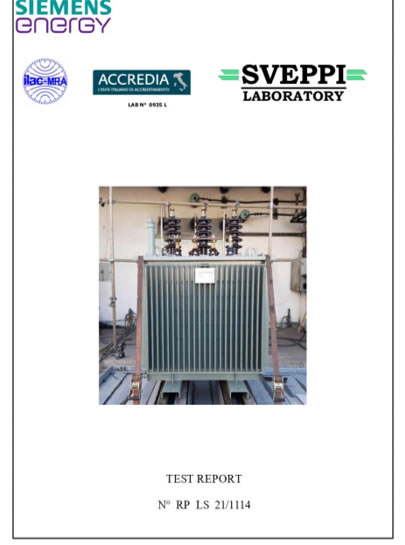

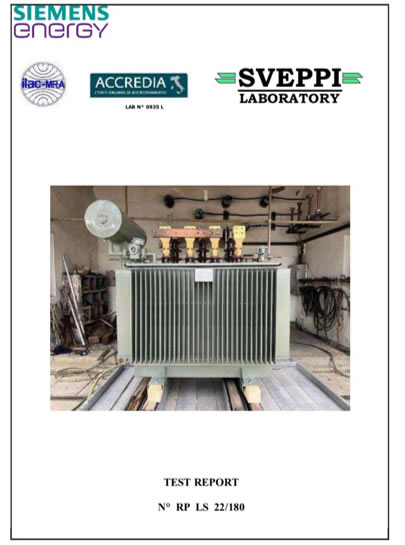

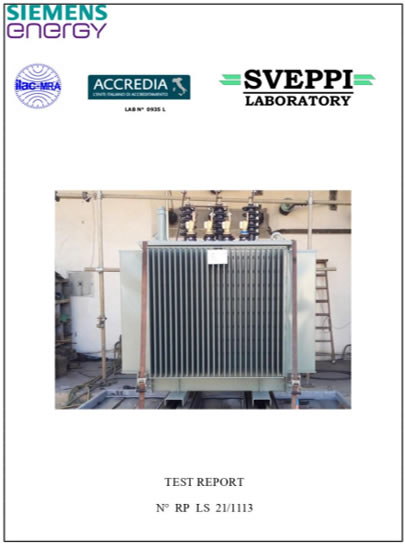

We send transformer samples for testing to internationally accredited laboratories such as SVEPPI in Siemens for testing short-circuit strenght.
All our measuring instruments are regularly transported for calibration to internationally accredited institutions.
This includes leading European calibration centres such as the Nikola Tesla Institute in Belgrade, ensuring full compliance with IEC standards, traceability, and internationally recognized measurement accuracy.
This includes leading European calibration centres such as the Nikola Tesla Institute in Belgrade, ensuring full compliance with IEC standards, traceability, and internationally recognized measurement accuracy.

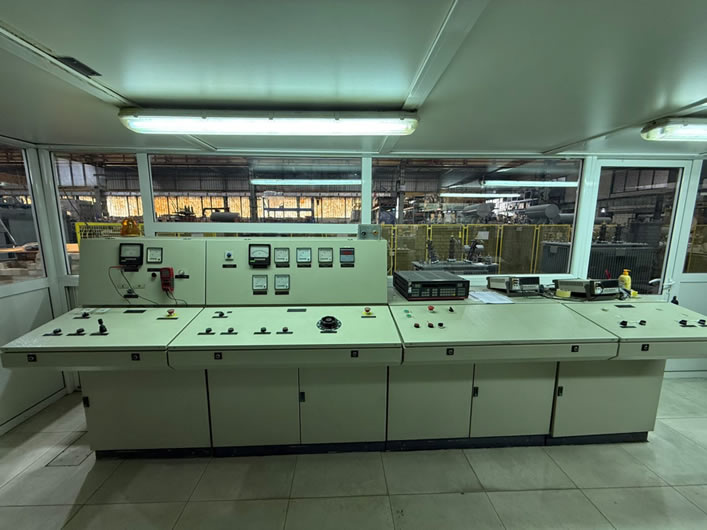

TEST PULT

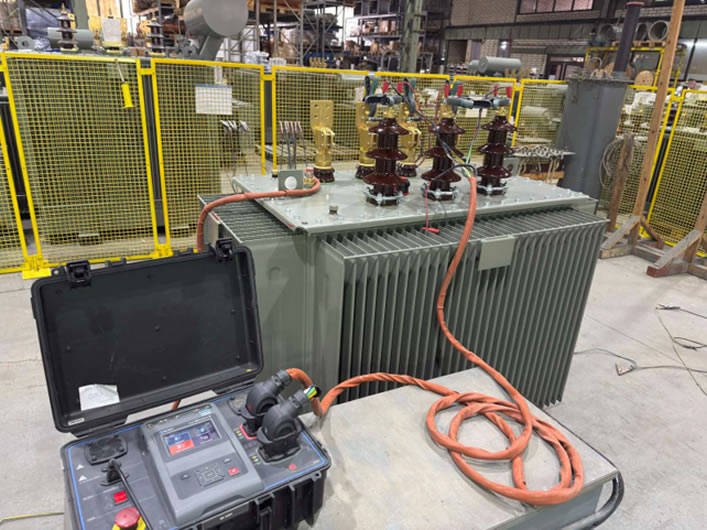

METREL MI3281 WR Analyser

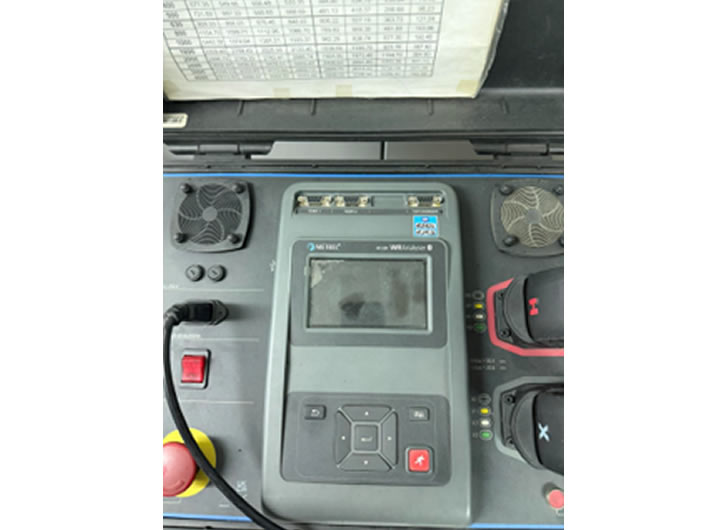

Winding ressistance tester

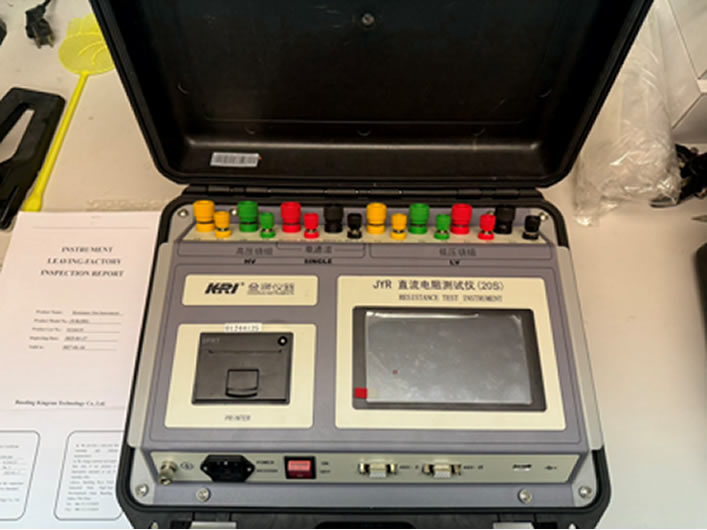

WInding resistance tester KRI JYR 20S

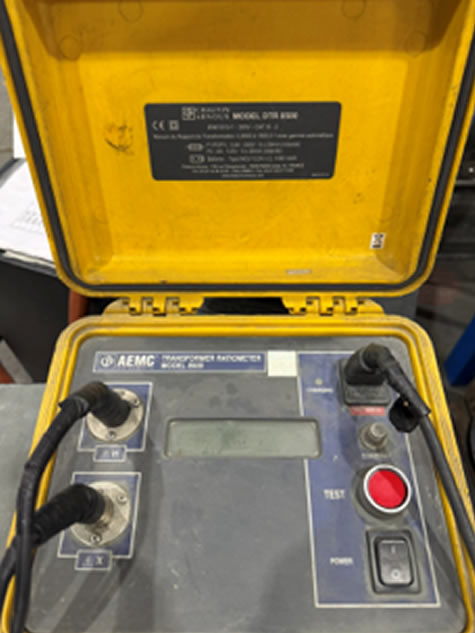

Voltage ratio tester AEMC Chauvin Arnoux DTR 8500

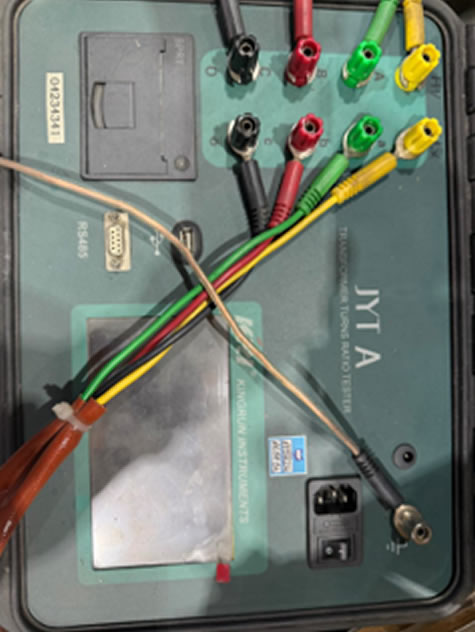

Voltage ratio tester KRI Kingrun Instruments JYT A

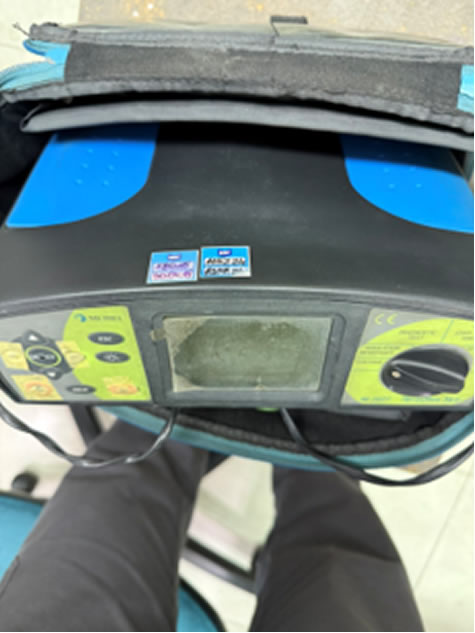

Insulation resistance tester METREL TeraOhm 5 kV MI2077

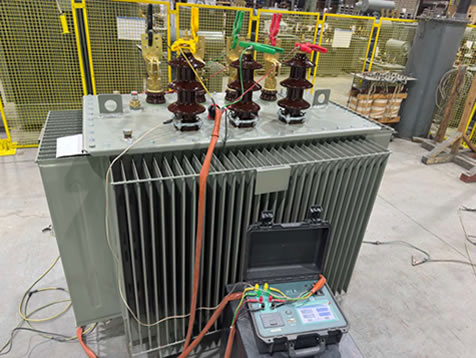

Measurement of voltage ratio and check of phase

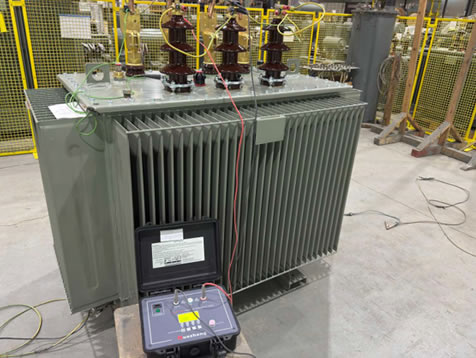

Insulation resistance test

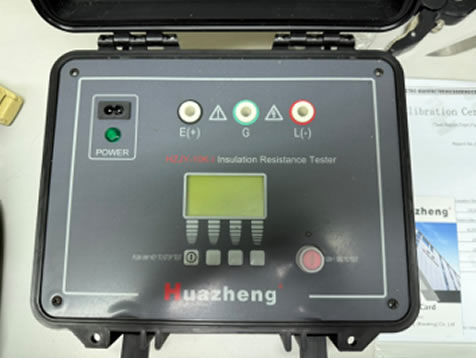

Insulation resistance tester Huaghzheng HZJY-20K-I

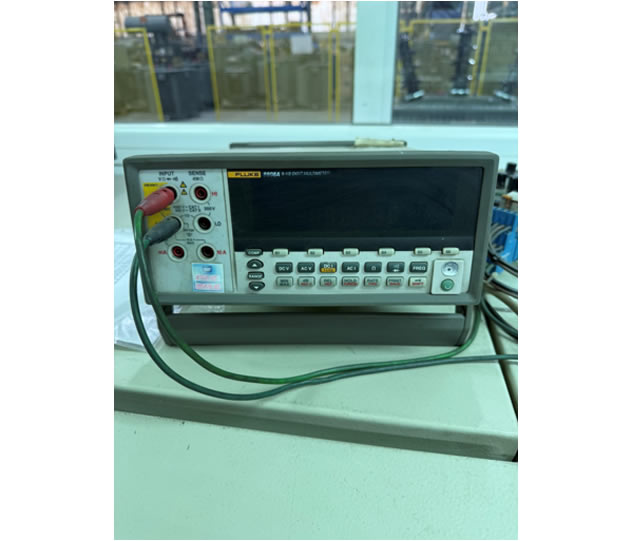

Fluke 8808A instrument

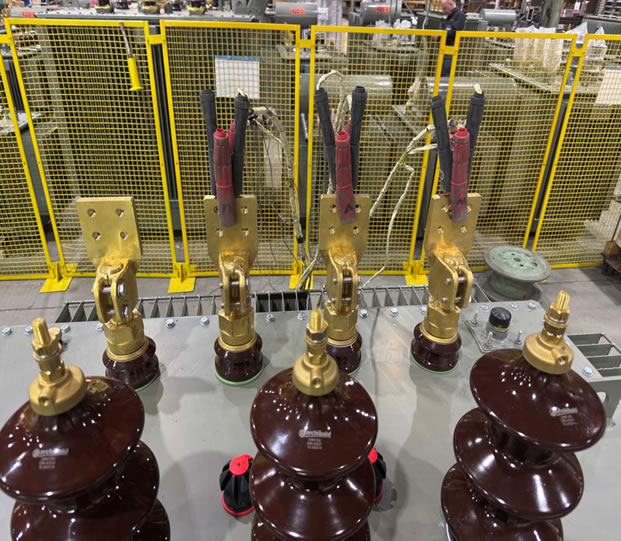

Measurement of no-load loss and current

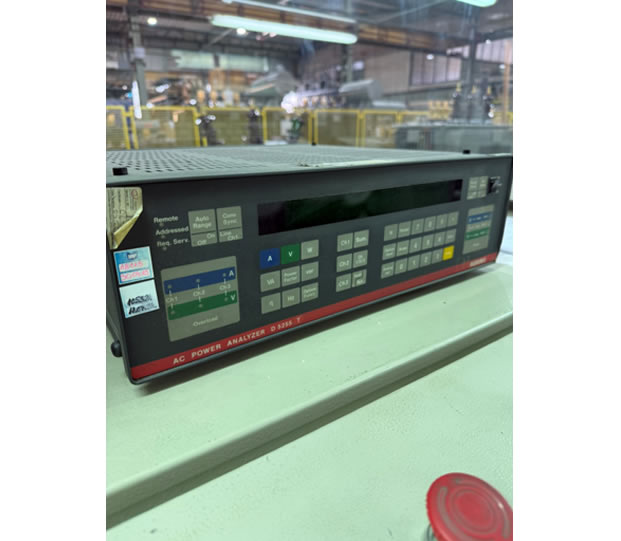

Short circuit impedance and load losses tester NORMA D 5255

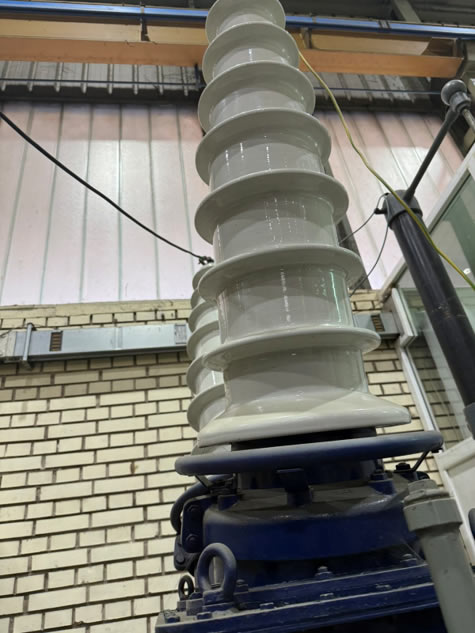

Dielectric test applied voltage Potential transformers CGS VSO 507

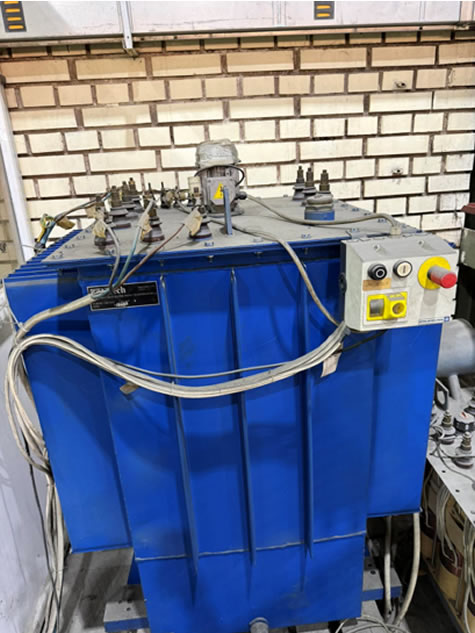

Measurement of short circuit impedance and load lossess regulation transformer Siltech

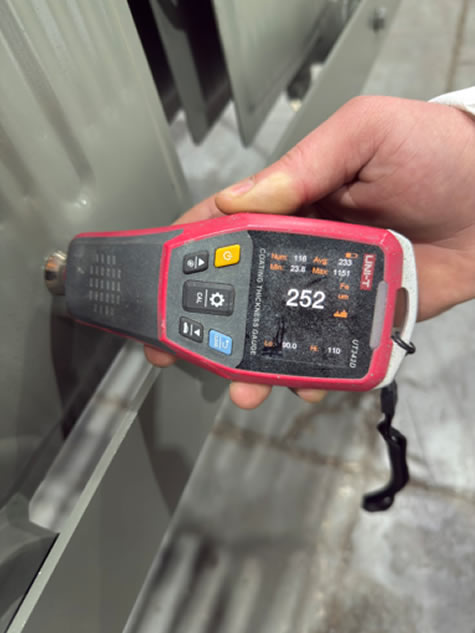

Check of external coating instrument test
